Netsh WinHTTP Show Proxy: Windows Command Guide

At 9:14 a.m., a background data-sync service starts failing again. It throws a connection error every few minutes, while the user sitting at the same workstation loads websites normally and the Windows proxy page already shows the corporate proxy. The browser works, but the service doesn't.

That situation usually isn't a contradiction. It means the browser and the service may be using different networking stacks. Before changing a proxy, open an administrator shell and run netsh winhttp show proxy. This command answers a narrow but important question: what does the machine-level WinHTTP configuration tell background processes to use?

When a Working Browser Hides a Broken Service

The first thing I check is the context of the failing process. A Windows service may run through services.exe, use SYSTEM credentials, and inherit Group Policy settings that don't match the interactive user's configuration. A scheduled task or update agent can face the same split. The operator sees a configured proxy in a browser or Windows Settings, but the non-interactive process sees direct access.

That mismatch is common in locked-down environments where Group Policy or mobile device management applied a user setting without applying the corresponding machine-level setting. The result is a service that repeatedly attempts a direct connection, even though the person testing the connection has a functioning browser session.

Practical rule: Test the network context that failed. A browser test proves that the browser can connect, not that a service account can.

Run:

netsh winhttp show proxy

Microsoft documents this command as the way to display the current WinHTTP proxy setting. It reports whether WinHTTP uses a direct connection or a configured proxy, along with the proxy server and bypass list, although Microsoft now marks show proxy as deprecated and recommends show advproxy for newer configurations in its WinHTTP netsh command documentation.

The rest of the diagnosis depends on reading that result correctly. You need to distinguish WinHTTP from WinINet and browser settings, identify whether the failing process runs under a different account or bitness, and test changes in the same context as the service. Start with the command because it removes guesswork from the first layer of the investigation.

What WinHTTP Is and Why It Has Its Own Proxy Settings

WinHTTP is a system-level HTTP API in Windows. It gives services and other non-interactive applications a way to make HTTP and HTTPS requests without depending on a logged-in user's browser session. Microsoft describes WinHTTP settings as machine-level configuration used by applications that rely on the WinHTTP API, with settings generally applied when a session is created and potentially overridden for an individual request in the WinHTTP proxy configuration guidance.

A proxy server is an intermediary that forwards a client request to its destination. A bypass list is a set of hosts that WinHTTP should contact directly instead of sending through that intermediary. Direct access means no proxy is configured at the WinHTTP layer, so requests go straight to their destinations unless the application applies another rule.

These settings can exist separately from browser settings. WinINet is a Windows client networking layer associated with older interactive applications and per-user Internet Options. Modern browsers may also maintain their own networking behavior. Changing one layer doesn't automatically change the others.

That separation matters for practical workloads:

• Windows services can use WinHTTP while the signed-in user relies on a browser stack.
• Scheduled tasks can run under a service identity with different credentials and profile settings.
• Windows Update and management agents can depend on machine-level connectivity.
• Background automation can inherit the system configuration rather than the proxy selected in a browser window.

Microsoft's Windows Update guidance explicitly uses netsh winhttp show proxy to verify proxy configuration before scanning or downloading updates. The same documentation confirms that netsh winhttp commands can run interactively at the netsh prompt or inside scripts and batch files, which makes the command useful for repeatable administration rather than only one-off checks.

For a WinHTTP client, netsh winhttp show proxy is therefore the authoritative read of that specific layer. It isn't a universal report of every proxy configured on the computer.

Running the Command and Reading the Output

Use a shell with admin rights when you need to inspect or change machine-level settings.

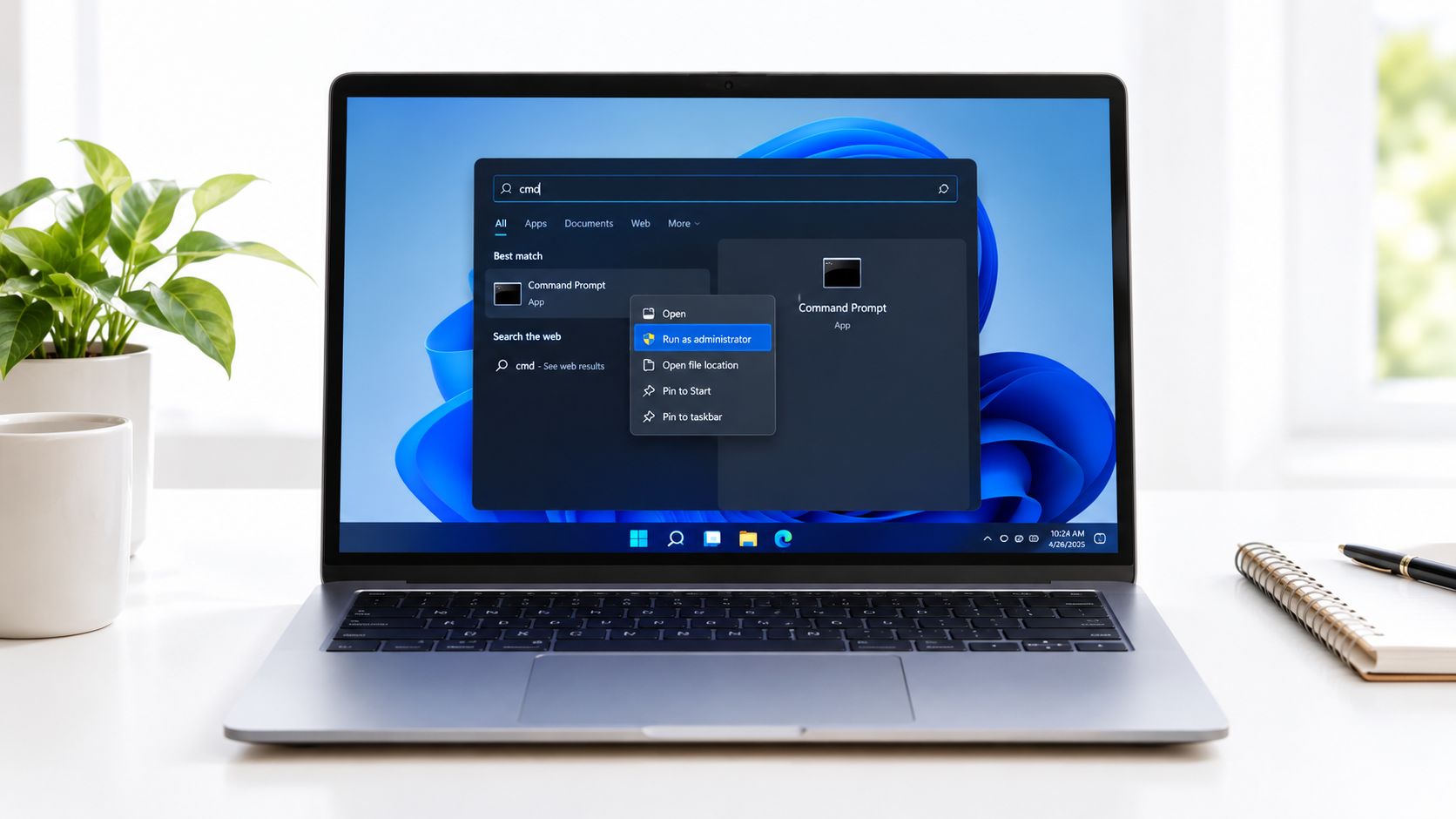

1. Open Start and type cmd.
2. Right-click Command Prompt and select Run as administrator.
3. Type netsh winhttp show proxy and press Enter.

PowerShell works too. The command syntax is identical because PowerShell can invoke the Windows netsh utility directly.

On supported newer Windows configurations, the output can include a deprecation notice recommending show advproxy. Treat that notice as guidance about the command interface, not as proof that the displayed setting is invalid. The body of the output still tells you what the current WinHTTP layer reports.

You'll normally interpret one of these states:

• Direct access (no proxy server) means WinHTTP has no configured proxy at this layer.
• Proxy Server: server:port means WinHTTP has a proxy endpoint configured.
• Bypass List identifies hosts that should be contacted directly.

The proxy value is written as a host and port, such as proxy.corp.local:8080. A bypass entry such as <local> represents local or intranet destinations that should avoid the proxy.

The command reports the per-machine configuration associated with HKEY_LOCAL_MACHINE, not the per-user configuration stored under HKEY_CURRENT_USER. On 64-bit Windows, some 32-bit processes can read the separate WOW6432Node registry view. That distinction becomes important when a service and an administrator's diagnostic shell don't appear to agree.

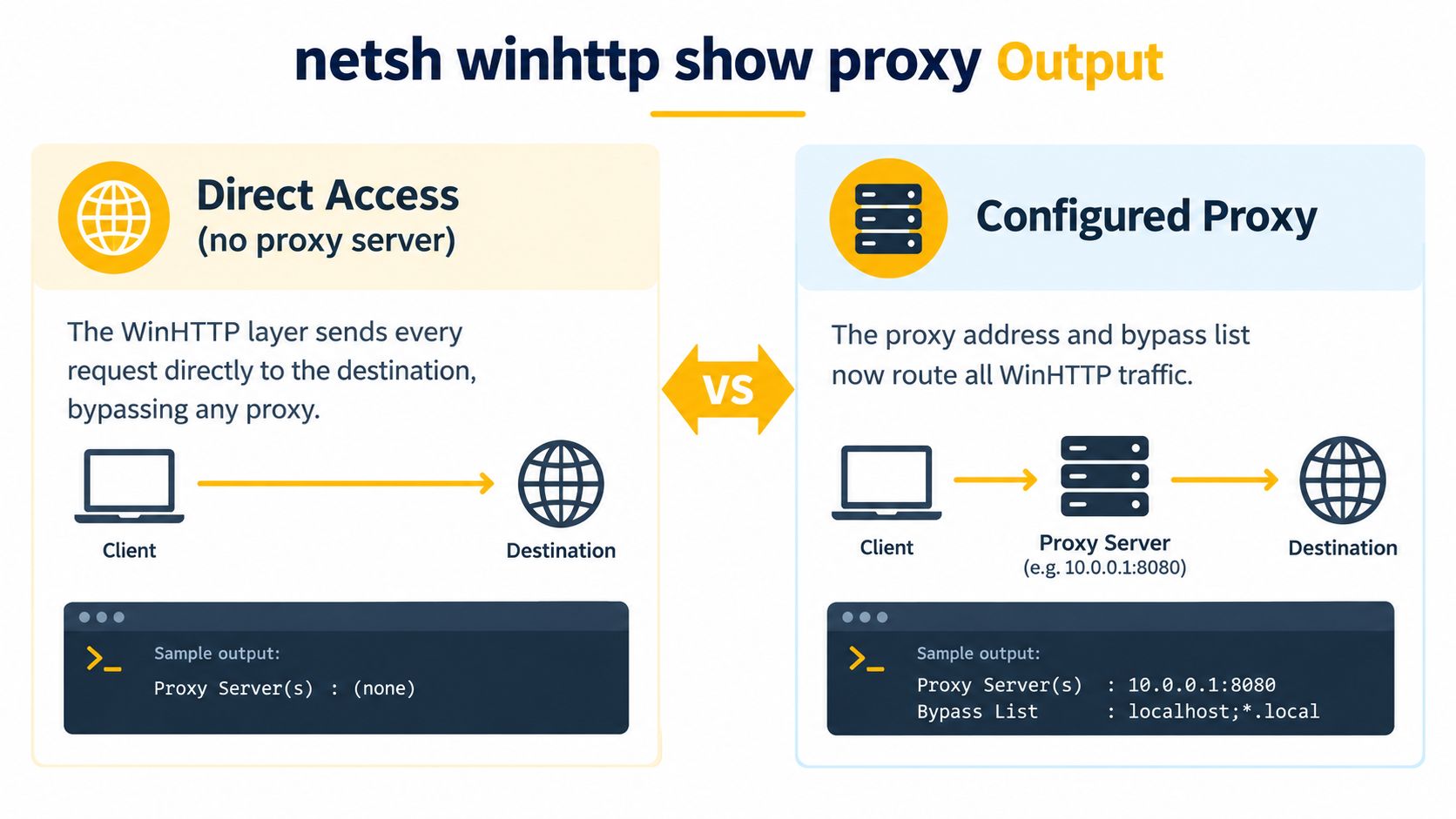

Interpreting Direct Access vs Configured Proxy

The output is short, but each state points toward a different failure path.

Direct access (no proxy server) means the WinHTTP layer sends requests directly to their destinations. A browser proxy or per-user Internet Options setting doesn't override that result for a WinHTTP client. If a background service must traverse a corporate proxy, direct access can explain why it cannot reach an external endpoint, while the user's browser continues to work.

A configured result looks more like this conceptually:

Proxy Server: proxy.corp.local:8080
Bypass List: <local>;internal.example

The proxy address identifies the intermediary. The bypass list tells WinHTTP which destinations should skip it. A bypass rule that is too broad can send traffic directly when it should be inspected or routed through the corporate path. A rule that is too narrow can send internal traffic to a proxy that can't resolve or reach the internal hostname.

Don't stop at the presence of a proxy line. Confirm that the affected application uses WinHTTP, that the endpoint is not covered by a bypass rule, and that the process reads the same registry view you inspected. A setting can also be cleared by policy or by another administrative change, leaving the machine in direct mode after someone believed a proxy had been applied.

The command doesn't test authentication, DNS resolution, firewall policy, or application-level overrides. It tells you which WinHTTP route the application is being offered.

WinHTTP vs WinINet vs Browser Proxy Settings

Treat proxy configuration as a stack map, not as a single Windows setting. WinHTTP, WinINet, and browser-level configuration can coexist on one device, and each application decides which layer it reads.

WinHTTP is the machine-oriented layer. It commonly serves background Windows components and applications built against the WinHTTP API. WinINet is a higher-level client library historically associated with interactive Windows applications and per-user Internet Options. Browser configuration may follow operating-system settings, use a profile-level setting, or apply its own rules.

This is why copying a proxy into a browser setting may fix an interactive test while leaving a scheduled scraper, QA worker, or update service unchanged. The reverse is also true. Running netsh winhttp set proxy can alter machine-level behavior without changing what a signed-in user sees in Internet Options.

For teams automating legitimate market research, ad verification, price monitoring, or geo-dependent QA, identify the client stack before selecting a proxy integration method. A useful reference for application-side setup concepts is this proxy setup guide, but the Windows diagnostic still begins with the process that failed and the layer it uses.

The mental model is simple: browser success is a browser result, WinINet success is a user-context result, and WinHTTP success is a machine or service-context result. Don't use one as a substitute for another.

Setting, Importing, and Resetting WinHTTP Proxy

Inspection should come before modification. If the output confirms that WinHTTP is the layer involved, use the relevant command deliberately and record the previous state.

A traditional explicit configuration looks like this:

netsh winhttp set proxy proxy-server="proxy.corp.local:8080" bypass-list="<local>;internal.example"

The proxy-server value identifies the endpoint, while bypass-list contains destinations that should connect directly. Microsoft now treats the older set proxy and show proxy path as legacy administration for newer configurations. For automatic discovery, PAC-based routing, or more advanced enterprise settings, use the advproxy commands instead:

netsh winhttp show advproxy
netsh winhttp set advproxy

Importing is another option:

netsh winhttp import proxy source=ie

That command copies the current per-user WinINet configuration into the machine-level WinHTTP context. It can be convenient when the user's settings are known to be correct, but it can also surprise you on a multi-user server because a user-context configuration becomes a machine-wide setting.

To return WinHTTP to direct access, use:

netsh winhttp reset proxy

Microsoft specifically warns against relying on netsh winhttp set proxy for Delivery Optimization because it doesn't provide auto-detection, PAC URL support, or proxy authentication support. That makes explicit set proxy a poor fit for enterprise workflows that depend on automatic discovery or authenticated proxy chains. For background on automatic discovery concepts, see this automatic proxy setup guide.

Run Command Prompt as administrator, then follow this order:

1. Read the current state.
2. Change one setting.
3. Run show proxy or show advproxy again.
4. Test from the affected service context.
5. Reset if the change worsens the incident.

A bad machine-level value can affect every WinHTTP client on the host, not just the application you were investigating.

Common Proxy Mismatches the Command Reveals

The painful Windows proxy failures are usually not caused by an obviously empty configuration. They come from a configuration that looks correct in one context and wrong in another.

The first pattern is the classic browser-versus-service trap. A user configures a proxy through Internet Options or a browser surface, but the WinHTTP command returns direct access. Windows Update and other machine-level clients can then follow a different route from the browser.

The second pattern often appears after a hurried change. The operator runs set proxy, confirms the command completed, and assumes every process now uses the value. The affected service may not use WinHTTP at all, or it may run under a context that has different user-level settings and application overrides.

The third pattern deserves a registry-view check. A 32-bit process under WOW64 can read HKLM\SOFTWARE\WOW6432Node, while a 64-bit service reads the native machine view. Scripts that edit the registry directly can update one view and leave the other unchanged. Re-run the diagnostic after every change and compare the result with the behavior of the actual process.

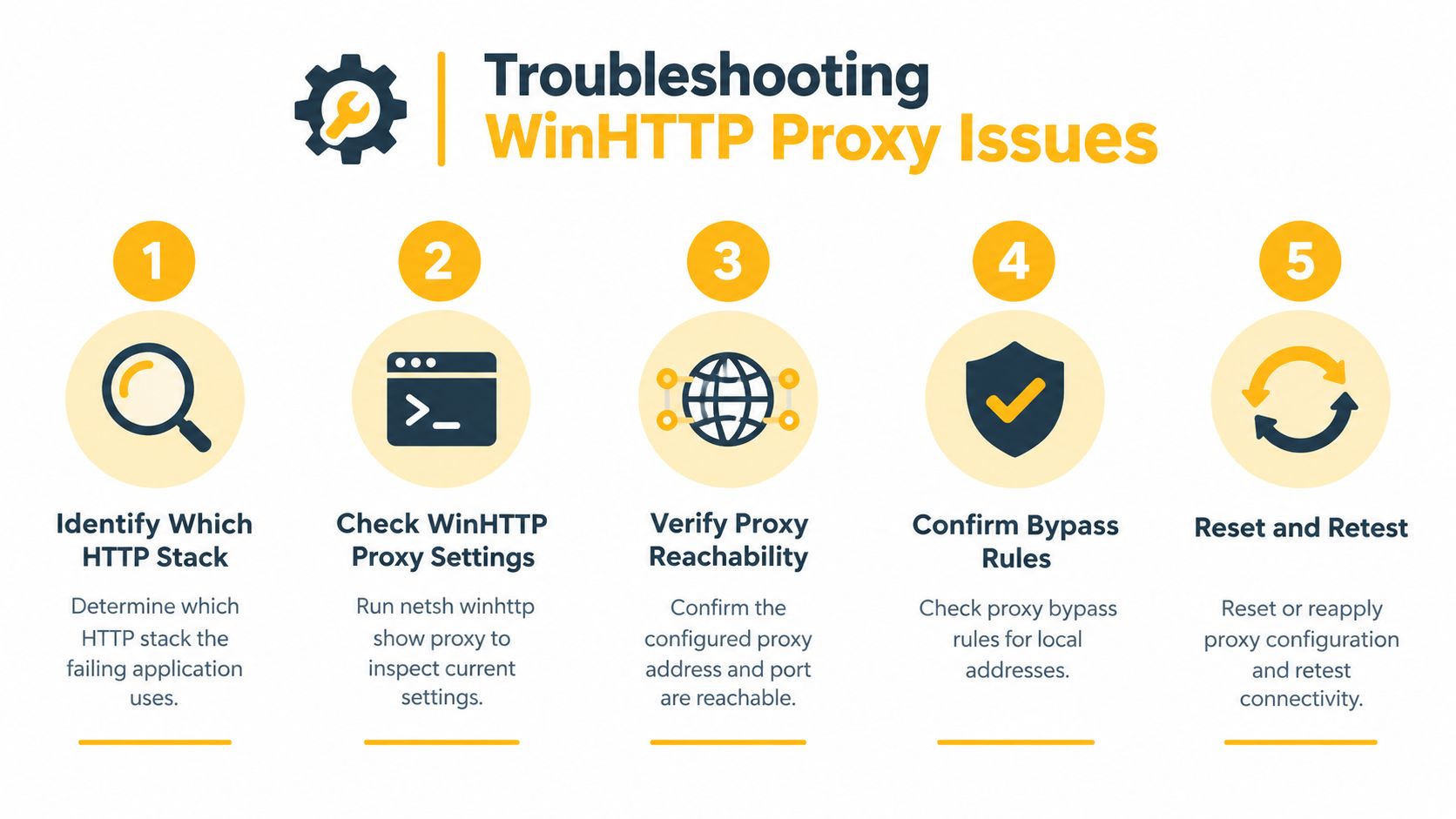

Troubleshooting WinHTTP Proxy Issues Step by Step

Use a layered process. Changing proxy values repeatedly without identifying the client stack creates noise and can break unrelated services.

1. Identify the stack. Confirm whether the failing application uses WinHTTP, WinINet, a browser-managed configuration, or an application-specific setting. Don't use browser success as evidence for a service.
2. Read the machine state. In an administrator Command Prompt, run netsh winhttp show proxy and record whether the result is direct access or a configured proxy.
3. Check the route. Verify that the configured proxy host and port are reachable from the affected machine and that the target isn't accidentally covered by a bypass rule.
4. Check process context. Confirm whether the process is 32-bit or 64-bit, then compare the native WinHTTP registry view with the WOW6432Node view when applicable.
5. Reproduce in the service identity. If the process runs as LocalSystem, open a diagnostic shell with psexec -s -i cmd, run the same command, and compare the result.

For deeper tracing, use netsh winhttp show tracing to enable tracing, reproduce the failure, and then disable tracing so diagnostic logs don't grow unnecessarily. Correlate the request failure with Event Viewer under Applications and Services Logs, Microsoft, Windows, WinHttp.

The registry locations worth checking are HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Internet Settings\WinHttp and its WOW6432Node sibling. If you need a practical connection-failure checklist, this guide to a proxy refusing connections can supplement the Windows-side checks.

Automation Use Cases That Rely on WinHTTP

A proxy-stack error becomes an operational problem when it affects a process nobody is watching. Windows Update, Delivery Optimization, management agents, and other background components can depend on WinHTTP. A machine may still look healthy to its logged-in operator while patch retrieval, telemetry, enrollment, or certificate-related network requests fail in the background.

The command also matters to Windows-native automation. A scheduled job that polls an API, synchronizes data, checks prices, verifies advertising locations, or runs a compliant QA workflow can inherit machine-level networking rather than the browser's proxy. If the job runs under a service account, test that account's context instead of assuming the administrator's session is representative.

A proxy that works in an interactive browser is not automatically a proxy that works for automation.

Proxy type is a separate decision from Windows stack selection. Datacenter proxies generally provide infrastructure-hosted addresses and predictable connectivity. Residential proxies use addresses associated with residential access networks. Mobile proxies use 4G or 5G carrier connections, where carrier-grade NAT can place many subscribers behind shared mobile address space.

Mobile IPs can be harder for services to classify and block than datacenter addresses because they resemble ordinary carrier traffic, but that doesn't remove the need for responsible rate control, account ownership, platform compliance, or accurate identification. Choose HTTP or HTTPS for clients that speak those protocols, and SOCKS5 when the application specifically supports it. Then align rotation, sticky sessions, ASN, and geo-targeting with the workflow instead of treating rotation as a substitute for sound automation design.

Quick Reference for Netsh WinHTTP Subcommands

Use an administrator shell for changes. Read output after every modification, and remember that 32-bit and 64-bit processes can use different registry views.

Microsoft's WinHTTP command reference documents interactive and scripted use, which is useful when these checks form part of a deployment or compliance script.

Frequently Asked Questions About the Command

Why can the browser work when WinHTTP reports direct access

They can use separate proxy stacks. A browser or per-user configuration doesn't automatically populate the machine-level WinHTTP setting.

Does the command work in PowerShell

Yes. Open PowerShell with administrative rights and run netsh winhttp show proxy exactly as you would in Command Prompt.

How do PAC files fit into this

A PAC file provides automatic proxy selection logic. Use the advanced WinHTTP configuration path for PAC or automatic discovery rather than treating the traditional set proxy syntax as a complete replacement.

What happens without elevation

You may be able to read some information, but machine-level changes require a shell with administrator rights. If a change appears not to affect the service, reopen the shell as administrator and verify the result.

Why might a 32-bit process disagree with a 64-bit service

Under WOW64, 32-bit and 64-bit processes can read separate registry views. Check the view used by the failing process instead of relying on the result from an unrelated shell.
